Undercounter Water Filter with Sediment
Product Description
*******This Product has been******* *****customized/built in the USA*****
Undercounter Water Filter with Sediment Filter
This undercounter water filter has a white housing with 1/4 inch inlet/outlet ports. The micron rating for this filter is your choice - click on the Sediment Micron option above and make your selection.
This complete package includes;
1) White filter housing (1/4" ports)
2) Housing bracket
3) * Self piercing valve
4) 10 ft. tubing
5) Quick Connect fittings (2)
6) Sediment filter (your choice of micron rating)
7) Faucet kit
* The self piercing saddle valve is designed to mount on the incoming water line. This kit includes a self-piercing valve which can be used on 3/8" copper and larger by turning the bracket over to accommodate larger sized lines.
10" x 2.5" Housing
Top quality, heavy duty construction white housing with 1/4 inch inlet and outlet ports.
Housing Specifications and Data Information:
> Material (sump and cap) - Polypropylene
> Material (o-ring) - EPDM
> Max. Temp. - 125 degrees (F)
> Min. Temp. - 40 degrees (F)
> Max. PSI - 125 psi (6.3 bar)
> Cycle Tests (@ 125 psi) - 150,000 cycles
> Threads - Straight

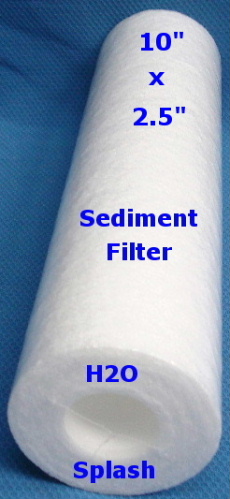

Sediment Filter
This 10 inch sediment filter is made of 100% high purity polypropylene, surfactant free, binder free and adhesive free. This sediment has a special design to trap particulates. Four layers, with outside-in flow and step-by-step micron rating that effectively retains particles and extends the filter life with a much lower pressure drop. Sediment filters are in compliance with FDA requirements and they are NSF Standard 42 certified. Available in; One (1), five (5), ten (10) or twenty (20) micron rating, up to 8 gallon flow rate, 10" length and 2 1/2 OD"
They have great particle holding capacity and are being used in a variety of applications such as pre-filters for reverse osmosis systems, pre-filters for water filtration units, aquarium pre-filters and being used as sediment collectors for whole house systems.
Specifications and Data Information - Sediment Filter:
Filter - Length 9 7/8" x 2.5" diameter (commonly referred to as 10" x 2.5")
Enhanced Dirt Holding Capacity
High Consistency Melt Blow Polypropylene
Easy and Safe Cartridge Incineration and Disposal
Free of Surfactants, Binders and Adhesives
Ideal for use as pre-treatment to a RO Reverse Osmosis Drinking Water System
Meets FDA compliance for food and beverage contact
Contains no wetting agents, solvents, antistatic agents or binders.
Available Micron Ratings: 1, 5, 10, 20 and 50
Bonded micro-fiber construction offers no fiber release
Superior chemical resistance and is not prone to bacterial attack
Performance Tested - NSF and FDA certified
This package will provide your family with good quality filtered water at a fraction of the price of bottled water.
Need extra filters - click on Sediment Filters, Carbon Filters or Sediment and Carbon Combos below and you will be transferred to those categories
Sediment Filters
Carbon Filters
Sediment and Carbon Combos
Check our other countertop and undercounter units - clear or white housings - carbon and/or sediment filters - micron ratings of your choice - single, dual or triple housing units.
Undercounter Water Filter with Sediment Filter
This undercounter water filter has a white housing with 1/4 inch inlet/outlet ports. The micron rating for this filter is your choice - click on the Sediment Micron option above and make your selection.
This complete package includes;
1) White filter housing (1/4" ports)
2) Housing bracket
3) * Self piercing valve
4) 10 ft. tubing
5) Quick Connect fittings (2)
6) Sediment filter (your choice of micron rating)
7) Faucet kit
* The self piercing saddle valve is designed to mount on the incoming water line. This kit includes a self-piercing valve which can be used on 3/8" copper and larger by turning the bracket over to accommodate larger sized lines.
10" x 2.5" Housing
Top quality, heavy duty construction white housing with 1/4 inch inlet and outlet ports.
Housing Specifications and Data Information:
> Material (sump and cap) - Polypropylene
> Material (o-ring) - EPDM
> Max. Temp. - 125 degrees (F)
> Min. Temp. - 40 degrees (F)
> Max. PSI - 125 psi (6.3 bar)
> Cycle Tests (@ 125 psi) - 150,000 cycles
> Threads - Straight
Sediment Filter
This 10 inch sediment filter is made of 100% high purity polypropylene, surfactant free, binder free and adhesive free. This sediment has a special design to trap particulates. Four layers, with outside-in flow and step-by-step micron rating that effectively retains particles and extends the filter life with a much lower pressure drop. Sediment filters are in compliance with FDA requirements and they are NSF Standard 42 certified. Available in; One (1), five (5), ten (10) or twenty (20) micron rating, up to 8 gallon flow rate, 10" length and 2 1/2 OD"
They have great particle holding capacity and are being used in a variety of applications such as pre-filters for reverse osmosis systems, pre-filters for water filtration units, aquarium pre-filters and being used as sediment collectors for whole house systems.
Specifications and Data Information - Sediment Filter:
Filter - Length 9 7/8" x 2.5" diameter (commonly referred to as 10" x 2.5")
Enhanced Dirt Holding Capacity
High Consistency Melt Blow Polypropylene
Easy and Safe Cartridge Incineration and Disposal
Free of Surfactants, Binders and Adhesives
Ideal for use as pre-treatment to a RO Reverse Osmosis Drinking Water System
Meets FDA compliance for food and beverage contact
Contains no wetting agents, solvents, antistatic agents or binders.
Available Micron Ratings: 1, 5, 10, 20 and 50
Bonded micro-fiber construction offers no fiber release
Superior chemical resistance and is not prone to bacterial attack
Performance Tested - NSF and FDA certified
This package will provide your family with good quality filtered water at a fraction of the price of bottled water.
Need extra filters - click on Sediment Filters, Carbon Filters or Sediment and Carbon Combos below and you will be transferred to those categories
Sediment Filters
Carbon Filters
Sediment and Carbon Combos
Check our other countertop and undercounter units - clear or white housings - carbon and/or sediment filters - micron ratings of your choice - single, dual or triple housing units.
Regular Price:$178.95
Sale Price:$161.95
